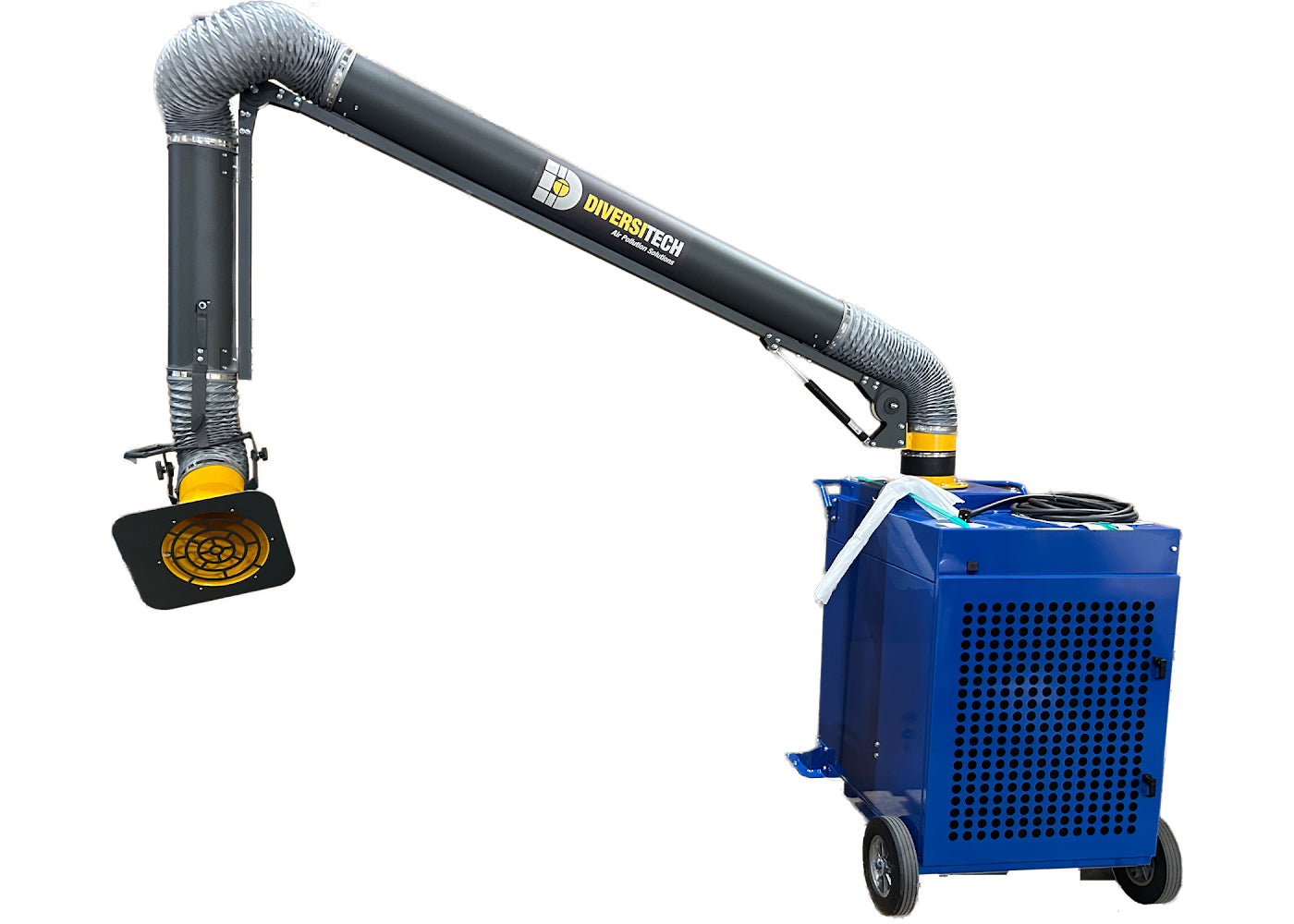

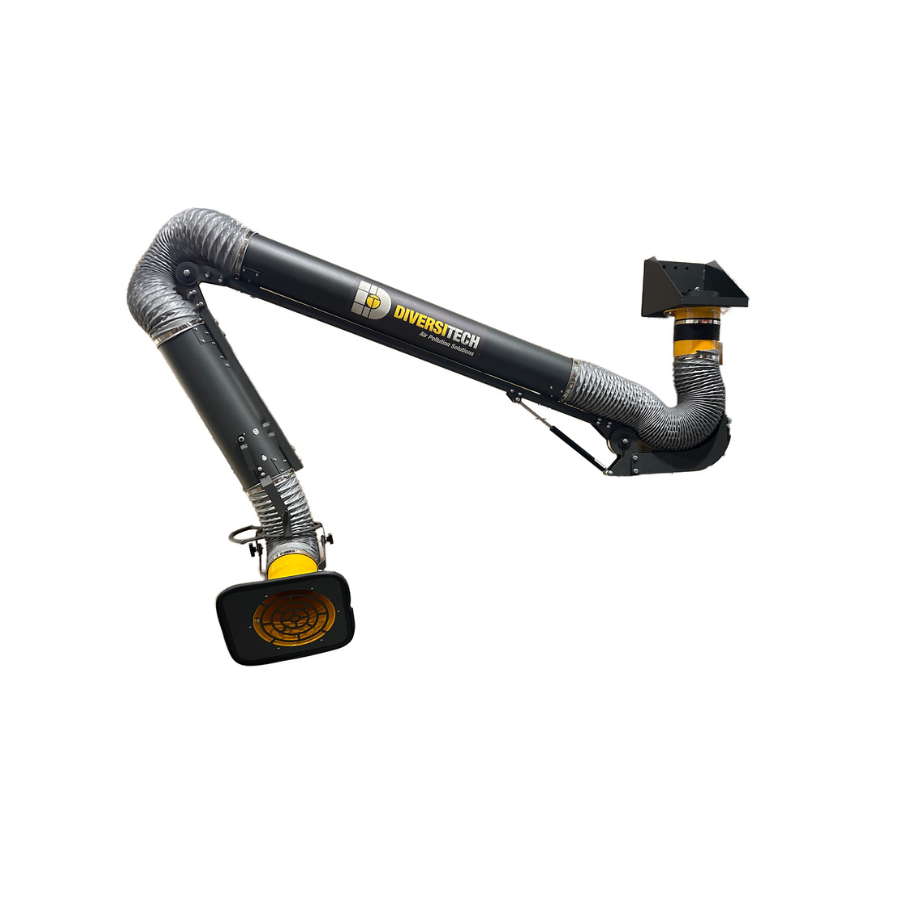

Diversitech’s XA4 series fume extraction arms provide users
with an ultra-smooth articulation by either strut-supported
standing fume arms or spring-assisted positioning of the
hanging arm.
The fully powder-coated steel structure with spark resistant
flexible joints rotates fully about the base, and features
dual pivots at the source-capture hood to allow accurate
positioning for best capture of smoke, fume or dust. The
ring handle at the hood allows easy positioning from all
sides, and the arm features an internal damper for fine
airflow control.
Available accessories include electrical grounding, battery
or wired LED lighting, and either spark or paint arrestance
pre-filters mounted at the fume arm hood – All available in
either 6” or 8” fume arm diameters
Features:
• Smooth, low-friction movement
• Flanged suction hood
• Wall mounted, column mounted or portable
• Externally articulated, gas spring loaded
• Industrial swivel-base
Options:
• Blowers (1200 to 2500 CFM)
• Hood mounted LED light kit
• Wall mounting bracket
• Extension booms (5’ or 10’)
